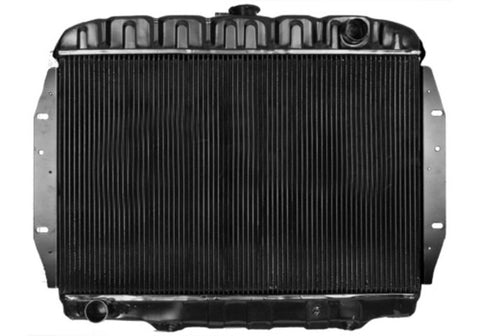

Radiator, Copper Brass, 3-Row Desert Cooler w/4-Row Capacity, OE Style Fit, 1958-71 AMC, Rambler Inline 6 American, Classic, Javelin, Marlin, Rambler, Rebel - Drop ships in approx. 4-6 weeks

Description:

• P/N:  000031SNHZ - Manual Transmission
• P/N:  000031ANHZ - Automatic w/Transmission Oil Cooler

3-Row Desert Cooler Radiators w/4-Row Capacity - Copper 80's style core with 1/2" tubes on 3/8" centers provides increased cooling efficiency without modifications to your AMC. Our 3-row high-efficiency desert cooler design offers more cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers. Copper/brass construction to ensure dependability.

Features:

• 3-row high-efficiency desert cooler design patterned after originals.
• More cooling efficiency than 4-row standard cores or aluminum cores due to tubes on 3/8" centers
• Copper/brass construction, downflow style
• 100% MIG welded seams, brazed core, & no epoxy or sealers
• Made in the USA
• Custom manufactured to order, please allow approximately 3-4 weeks for manufacturing plus shipping.

Specifications:

• Notes: Brackets To Engine Side
• Material: Copper/Brass
• Core Size: 16-3/4 x 24-1/2
• Core Thickness:  2"
• Available Rows: 3
• Cooler Size:  6x1/8 NPT
• Flow Type: Downflow
• Inlet Size: 1-1/2"
• Outlet Size: 1-1/2"
• Boxed Dimensions:  34 x 29 x 9
• Weight:  25 lbs.

Installation Notes:  Approximate installation time is 3-4 hours (experienced mechanic times listed, yours may take longer).  Professional installation recommended.
