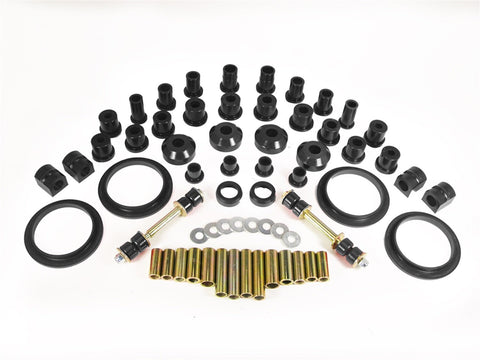

Total Suspension Bushing Kit, Urethane, 1968-69 AMC AMX, Javelin - Limited Lifetime Warranty

Description:

• P/N 601-2010
• Improves handling & reduces "spongy ride"
• Impervious to gas and oil
• Will not rot or deteriorate
• Available in black
• Country of Origin:  USA
• Manufacturer Warranty:  Limited lifetime
• Kit box dimensions:  18 x 6.8 x 12 inches

Kit Includes:

Sway Bar Bushing Kit

• 2 of Sway Bar Bushings
• 1 of Grease

Sway Bar Bushing Kit

• 2 of Sway Bar Bushings
• 1 of Grease

End Link Bushing Kit

• 1 of End Link Washer & Nut Kit
• 2 of Hex Cap Bolts - (3/8-16 X 7 inches)
• 2 of Metal Sleeves - 9/16 X .083 X 2.625 inches (3/8MIN ID)
• 8 of Endlink Bushings - (3/4 X 1.150 OD X 3/8 ID inches)

Front Trunnion and Pivot Bushings

• 2 of Pivot Bushing, Large
• 4 of Pivot Bushing, Small
• 2 of Metal Sleeves (3/4 X .120 X 2.020 inches)
• 1 of Metal Grease

Leaf Spring Shackle Kit

• 4 of Spring Eye Bushings
• 4 of Shackle Bushings
• 4 of Shackle Bushings
• 2 of Metal Sleeves - (3/4 X .083 X 3.000-9/16 inches)
• 2 of Metal Sleeves - (3/4 X .083 X 3.120 inches)
• 2 of Super Grease

Front Coil Spring Isolator Kit

• 4 of Front Coil Spring Isolators

Front Control Arm Bushing

• 4 of Upper C-Arm Bushings (Inner)
• 4 of Upper C-Arm Bushings (Outer)
• 2 of Lower C-Arm Bushings
• 2 of Lower C-Arm Thrust Washers
• 4 of Steel Sleeve - (3/4 OD X .120 X 1.830 inches)
• 2 of Steel Sleeves - (7/8 OD X .156 X 2.050 inches)
• 2 of Steel Sleeves - (3/4 OD X .120 X 2.020 inches)
• 8 of Metal Washers - (1 1/4 OD X 1/2 ID inches)
• 3 of Grease

Strut Rod Bushing Kit

• 4 of Front Strut Rod Bushings
• 2 of Metal Sleeves  (7/8 X .083 X 2.300 inch)

Why Urethane?
Production vehicles are built using rubber bushings in control arms, strut arms, leaf springs, body mounts, motor mounts, transmission mounts, sway bars and shocks. Additionally, rubber components can be found as coil spring pads, leaf spring pads and suspension bump stops. While rubber components offer a soft side, for typical driving conditions, they tend to deteriorate rapidly from exposure to the elements. This contributes to premature component failure, resulting in a “spongy” ride and loss of performance handling. Urethane is impervious to gas and oil and will not rot and is stronger than rubber.

Improved Handling and Performance
Due to the firmness of our specially formulated urethane, vehicle owners that have upgraded to Total Kits and Components have experienced better handling, cornering and a firmer suspension feel. American Performance urethane bushings are a “must” upgrade for High-Performance vehicles where improved performance and durability are desired.

Installation Made Easy
American Performance urethane products are made to exact specifications and are direct replacements for original rubber bushings and components. No special tools are required, standard tools and equipment replace factory units.

Shells/Sleeves
American Performance has a complete shell program for most popular applications. Many of our control arm bushing kits come complete with new shells. However, in some applications, the original metal shells will be needed to be reused.

Rubber Bushings?
American Performance offers complete rubber bushing alternatives if you prefer original equipment quality and ride performance.
